- USB scanner is used for diagnosis of all Evinrude E-Tec/Fitch)
- is an easy-to-use software program specifically designed for troubleshooting outboard engines
- Collect engine data, determine active faults, run engine tests and efficiently diagnose problems
- Works on any Windows PC, Laptop or Tablet running Windows XP, 7, 8.1 or 10)
- supports all Evinrude E-tec/Fitch models 1999-2020
Compatible with all models E-TEC, FICHT, DI, 1999-2020 (G2-only basic feature)
E-TEC: 25HP, 30HP, 40HP, 50HP, 55HP, 60HP, 65HP, 75HP, 90HP, 115HP, 130HP, 150HP, 175HP, 200HP, 225HP, 250HP, 300HP.
FICHT: 75HP, 90HP, 115HP, 135HP, 150HP, 175HP, 200HP, 225HP, 250HP. DI: 100HP, 115HP, 135HP, 150HP, 175HP, 200HP, 225HP, 250HP
Using this Diagnostic Kit you can make many tests and analyses, such as:
- Reading code(s).
- Reading the EMM module identification.
- Tests operation of the injectors and high voltage coils.
- Tests sensors and actuators in real time.
- Reading sensors and actuators in real time.
- Reading technical parameters in real-time. - Tests operation of the electric fuel pump.
- Generating the graphics of engine operation.
- Reading the serial numbers of the injectors.
- Replace the injector and injector data file.
- Reading of temperature and voltage of the TPS.
- Printing or export of diagnostic data to PDF files.
- Other tests and analysis
Works with the following Windows operating systems: Microsoft XP, Vista, 7, 8, 10 (32-bit and 64-bit)

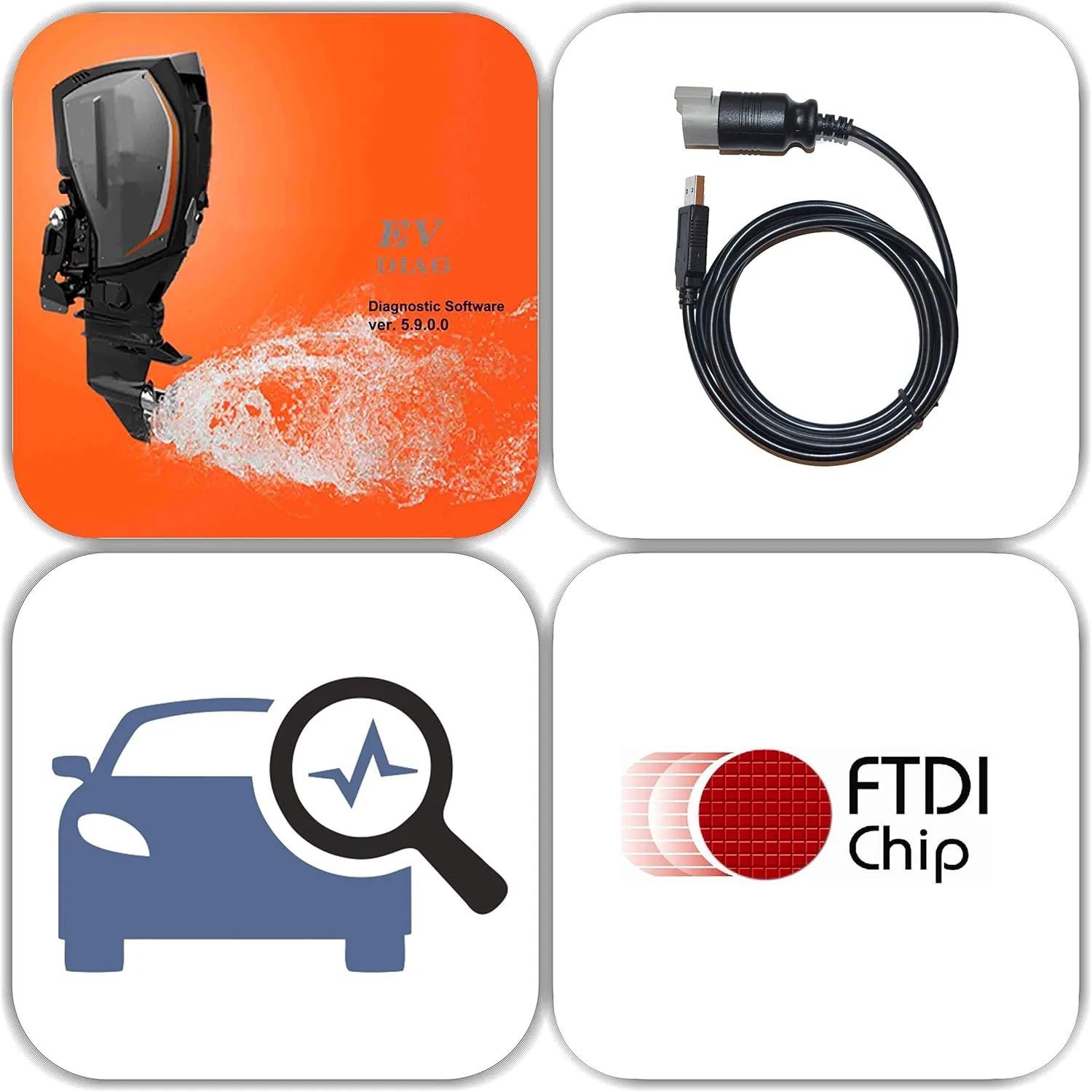

Diagnostic Kit includes:
USB shielded cable
USB flash drive with drivers and diagnostic software 5.9.0.0
Accompanying installation instruction on USB flash drive.
