TPI aWire SPI debugWIRE with Additional Adapter and Cables_AB

TPI aWire SPI debugWIRE with Additional Adapter and Cables_AB

$ 99.00

$ 280.00

Save: $

Size:
  • One Size
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

  • Part Number: Atmel-ICE-B2, Atmel-ICE Basic Kit
  • Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers, Comes with additional adapter and cables
  • Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
  • Full source-level debugging in Atmel Studio
  • Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)


Overview
Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability.

Key Features
Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
Full source-level debugging in Atmel Studio
Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints
1.62 to 5.5V target operation
USB powered
Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

Supported Software
Perfectly supports Atmel Studio 6.2 or higher version
Directly supports ICC8AVR or higher version
Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.

Supported Devices
Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
Programming and on-chip debugging of all Atmel AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces
JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
Programming of all Atmel tinyAVR 8-bit MCUs with support for the TPI interface

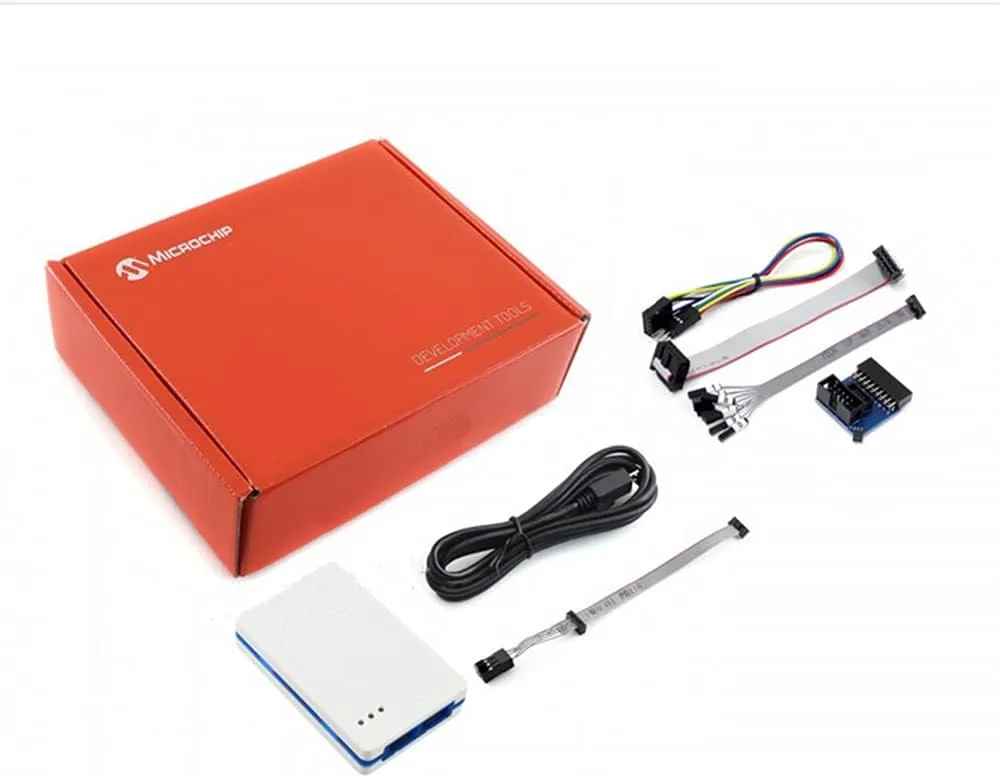

Package Contains:
Atmel-ICE unit x1
USB cable (1.8m, high-speed, micro-B) x1
IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1
Multi-functional adapter board x1
10pin flat cable x1
10pin 100mil squid cable x1
6-pin to 10-pin ISP cable x1

For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
