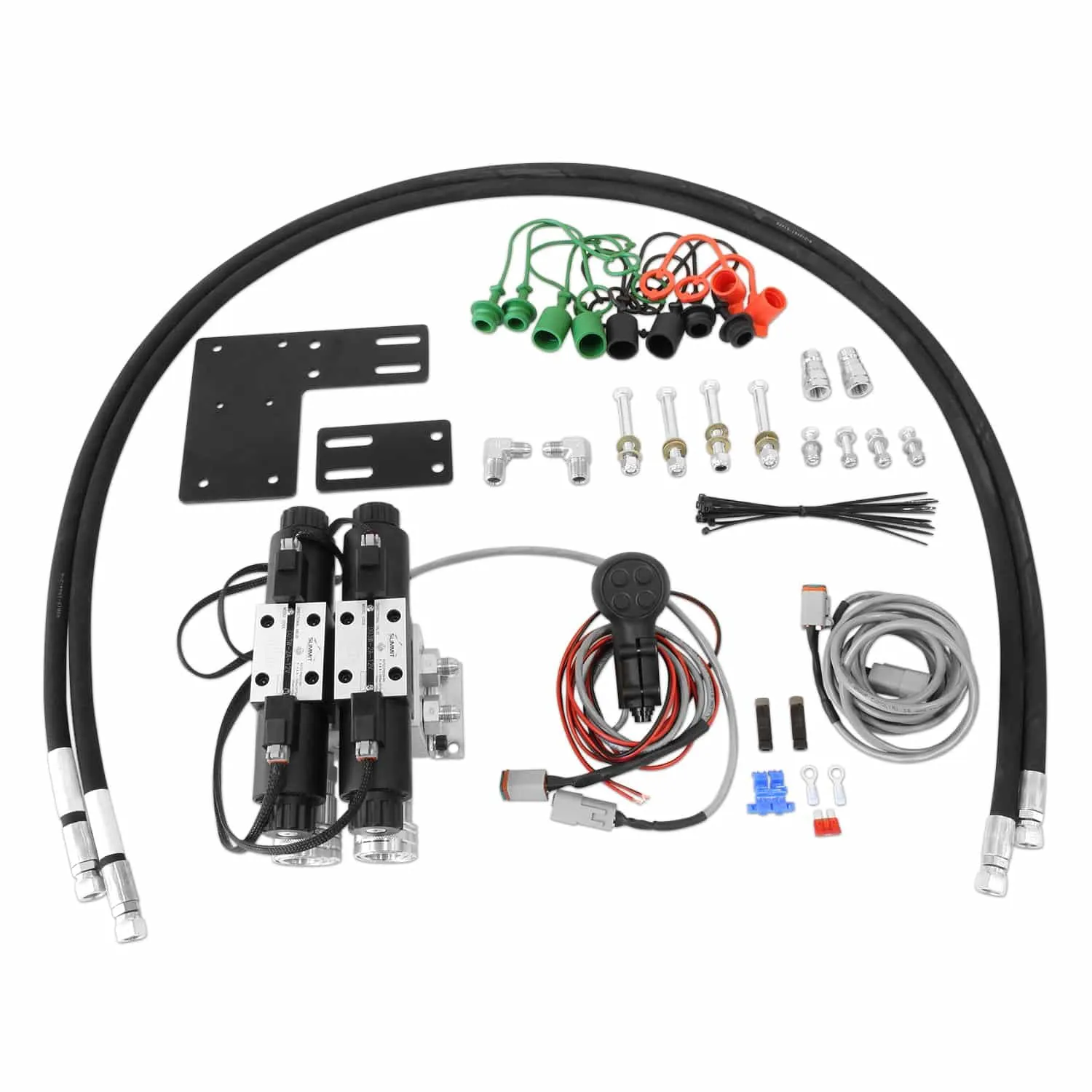

Rear Hydraulic Valve Kit for Kioti CK Series Tractors (Two Spool)

Fitment: Kioti CK2610, CK3510, CK4010 Series Tractors

This all-in-one rear remote valve kit is designed to install on Kioti CK2610, CK3510, CK4010 Series Tractors (with factory installed rear remotes installed) to add rear remote connections. This allows you to easily control various hydraulic implements in the rear using our Summit Hydraulics joystick and/or switchbox controls. You can add two, three, or four rear remote coupler sets to your machine.

This kit requires minimal basic tools, no prior hydraulic experience, and mounts directly to your ROPS. This will act independently from the other hydraulic valves on your machine.

This kit will connect to the two quick connect power beyond couplers on the rear of your machine. These are the couplers often used to connect a backhoe and then are connected to each other when the backhoe is not in use.

NOTE: The rear remote connections on your machine will be 1/2″ Body AG ISO 5675 Female Couplers. The hoses for your implements will need 1/2″ Body AG ISO 5675 Male Couplers.

Valve Body Features:

Solid aluminum housing designed for rugged use

Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI

Flow Rating: 15 GPM

Aluminum Body

3000 PSI Rated

Port Sizes:

Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread

Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

or Ergonomic joystick with 2 or 4 momentary push button switches

Valve harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

1 36″ Valve Harness with Deutsch connectors

Solenoid Specifications:

Nominal Voltage Tolerance /- 10%

Power Rating: 37 Watts

Amps: 3.08

100% Duty Cycle

• Date First Available ‏ : ‎ December 18, 2023
• Manufacturer ‏ : ‎ Summit Hydraulics
