- Using this to bench test motors common for FIRST robotics compeition, CIM, BAG, 775, etc. Just like an RC controller PWM, 1500pwm is neutral, 2200 high is forward, 800 low is reverse.
- 4CH tester servo: It can control 4 servos at the same time
- 50H analog servo signal cycle 20us frequency 50Hz,125H digital the steering gear a signal cycle 8us frequency 125Hz
- 250H Digital Servo signal cycle 4us frequency 250Hz
- Easy to use:Compatible with MG996R regular small servos,comes handy for testing small servos and will save you time from wiring such a tester yourself.
- Multiple output connectors:Can technically hook up an esc, servo & motor at the same to check everything at the same time
Features:
Item:1Set RC Servo Tester with power supply
Material: Plastic
Color: Blue black
Input voltage: DC 5~6V
Output signal width: 800~2200us
Button the Select (Note: the key switch function, circulation patterns)
1. S-1 manual mode (Manual)
2. S-2-bit mode (Neutral)
3. S-3 automatic mode (Automatic)
Keys pulse width:
1. 50H analog servo signal cycle 20us frequency 50Hz
2. 125H digital the steering gear a signal cycle 8us frequency 125HZ
3. 250H Digital Servo signal cycle 4us frequency 250Hz
Specifications:
This will connect only to a standard servo input or an esc input.
useful to test and set up servo travel and motor settings.
It works by synthesizing the output of a receiver one channel at a time.
Using this to bench test motors common for FIRST robotics compeition, CIM, BAG, 775, etc.
Compatible with MG996R regular small servos

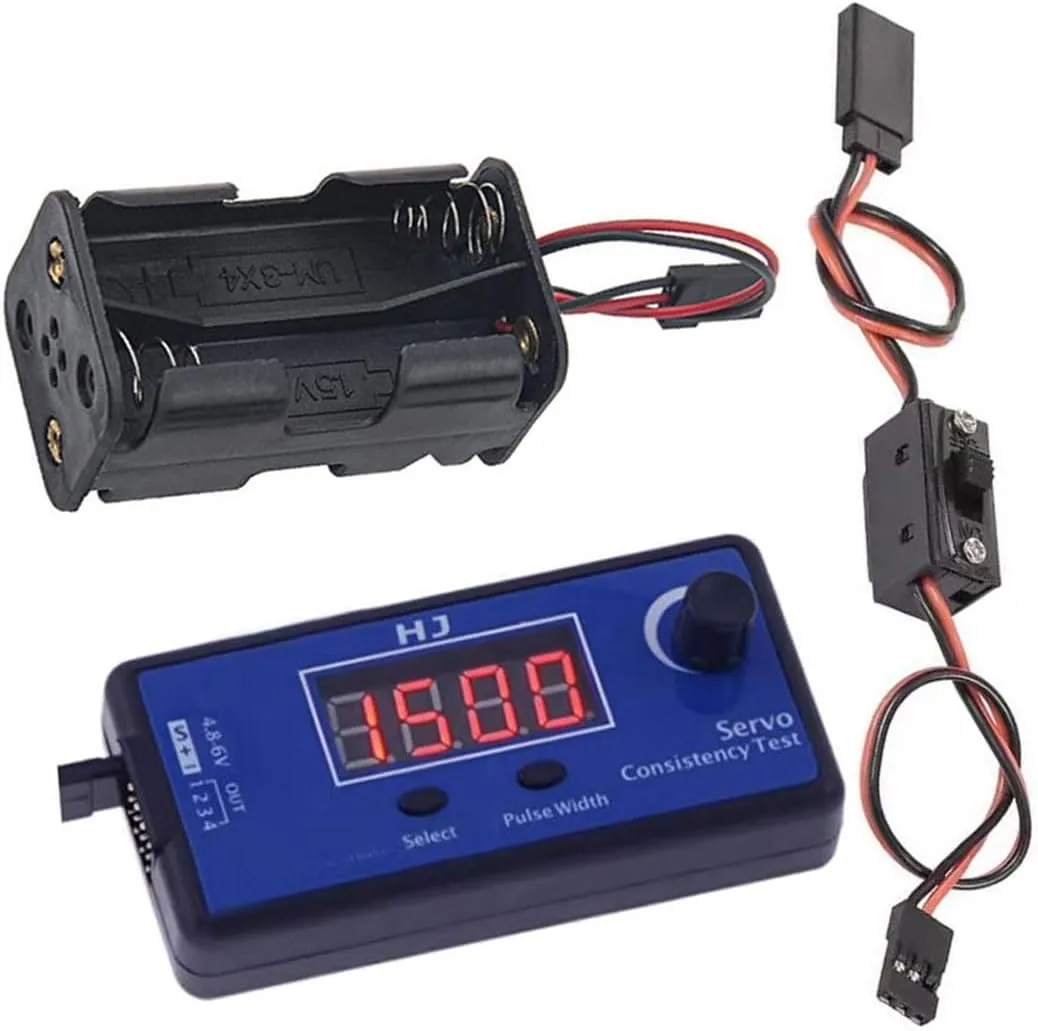

Package included
1pcs RC Digital Servo Tester / ESC Consistency Tester
1pcs 4 Cell AA Battery Holder Case
1pcs RC Switch with JR Plug.
